Valves

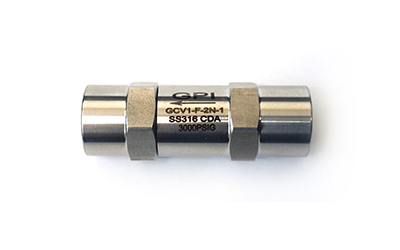

Poppet Check Valves

  • Pressure rating up to 3000psi (206bar) @ 100℉(38℃)
  • Temperature rating : -10℉(-23℃) to 375℉(191℃)
  • SS316, Brass
  • Cracking pressure : 1/3psig(0.02barg) to 100psig(6.89barg)
  • Sizes : GPI 1/8 to 1 in , Pipe Thread 1/8 to 1 in

Adjustable Check Vavles

  • Pressure rating up to 3000psi (206bar) @ 100℉(38℃)
  • Temperature rating : -10℉(-23℃) to 375℉(191℃)
  • SS316, Brass
  • Cracking pressure : 3psig(0.2barg) to 600psig(41.3barg)

High pressure Check Valves

  • Pressure rating up to 6000psi (413bar) @ 100℉(38℃)
  • Temperature rating : -10℉(-23℃) to 375℉(191℃)
  • SS316
  • Cracking pressure :
    1/3psig(0.02bagr) to 25psig(1.7barg)
  • Sizes : GPI 1/8 to 1 in
    Pipe Thread 1/8 to 1 in
    S/W : 1/4 to 1 in
