Valves

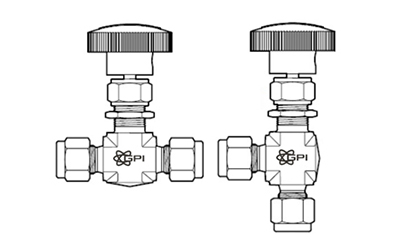

Integral Bonnet Needle Valves

  • Integral Bonnet Needle Valves
  • Temperature rating: -65℉(-54℃) to 450℉(232℃)
  • SS316, Brass, and Alloy
  • In-Line or Angle pattern
  • Bee stem, Refulating stem, Soft seat
  • Sizes : GPI 1/8 to 3/4 in, Pipe Thread 1/8 to 1/2 in

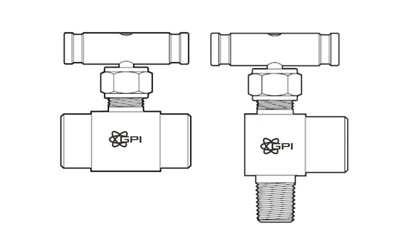

Integral Bonnet Bar Stock Needle Valves

  • Pressure rating up to 6000psi (413bar) @ 100℉(38℃)
  • Temperature rating: -65℉(-54℃) to 450℉(232℃)
  • SS316, Alloy
  • Vee stem, Regulating stem, Soft seat
  • Sizes : GPI 1/4 to 1/2 in , Pipe Thread 1/4 to 3/4 in.

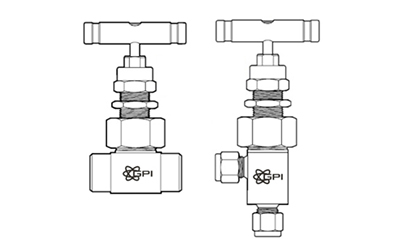

Union Bonnet Needle Valves

  • Pressure rating up to 6000psi (413bar) @ 100℉(38℃)
  • Temperature rating :
    up to 572℉(300℃) with PTFE packing
    up to 1200℉ (649℃) with Grafoil packing
  • Standard SS316. optional Alloy 20. and Alloy C276
  • Non-ratationg globe type stem tip
  • Sizes : GPI 1/8 to 1 in
    Pipe Thread 1/8 to 1 in
    S/W : 1/4 to 1/2 in
