Valves

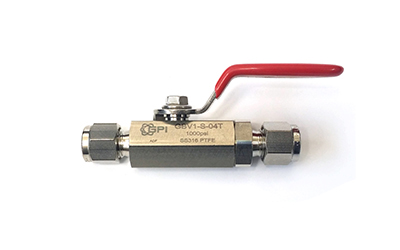

Bar Stock Ball Valves

  • Pressure rating up to 1000psi (69bar) @ 100℉(38℃)
  • Temperature rating : -65℉(-54℃) to 400℉(205℃)
  • SS316, Brass
  • Butterfly handle optional
  • Sizes : GPI 1/4 to 1 in , Pipe Thread 1/4 to 1 in.

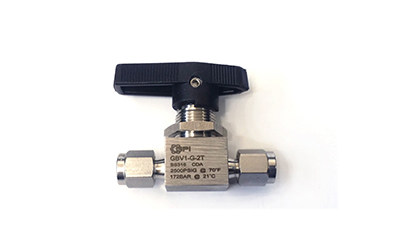

One-Piece Instrumentation Ball Valves

  • Pressure rating up to 3000psi(206bar)@100℉(38℃)
  • Temperature rating : 50℉(10℃) to 150℉(65℃)
  • SS316, Brass
  • Sealing without system pressure
  • Sizes : GPI 1/16 to 3/4 in, Pipe Thread 1/8 to 1/2 in.

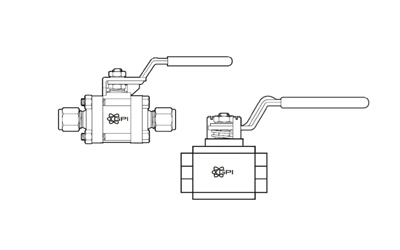

High Pressure Ball Valves

  • Pressure rating up to 10.000psi (690bar) @ 100℉(38℃)
  • Temperature rating :
    -22℉(-30℃) to 265℉(130℃) with PVDF Seat
    -65℉(-54℃) to 500℉(260℃) with PVDF Seat
  • SS316
  • Panel mounting and locking device are available
  • 2-way, 3-way
  • Sizes : GPI 1/4 to 1 in, Pipe Thread 1/4 1 in.
